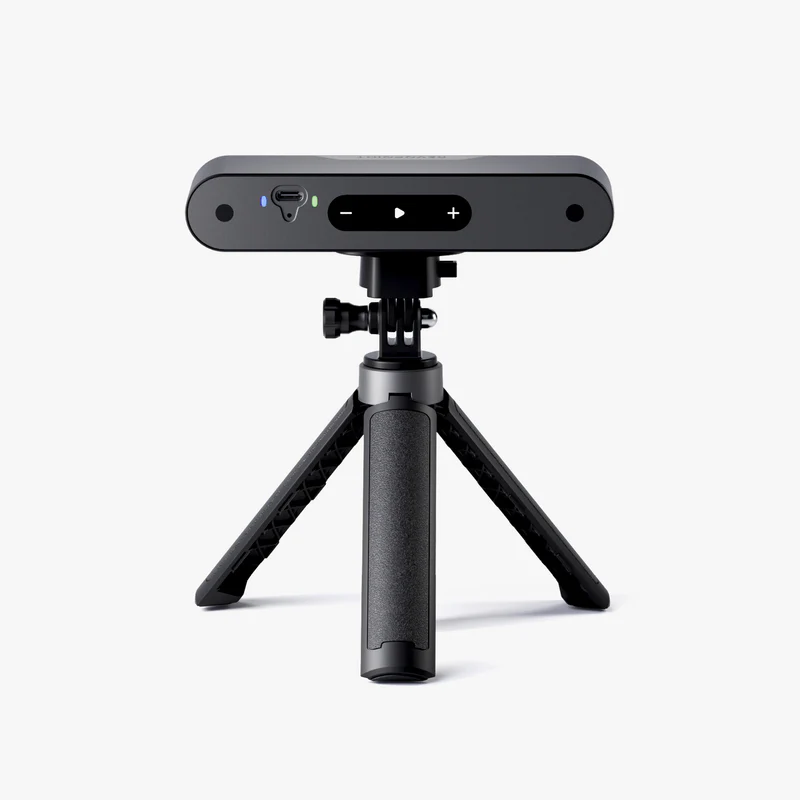

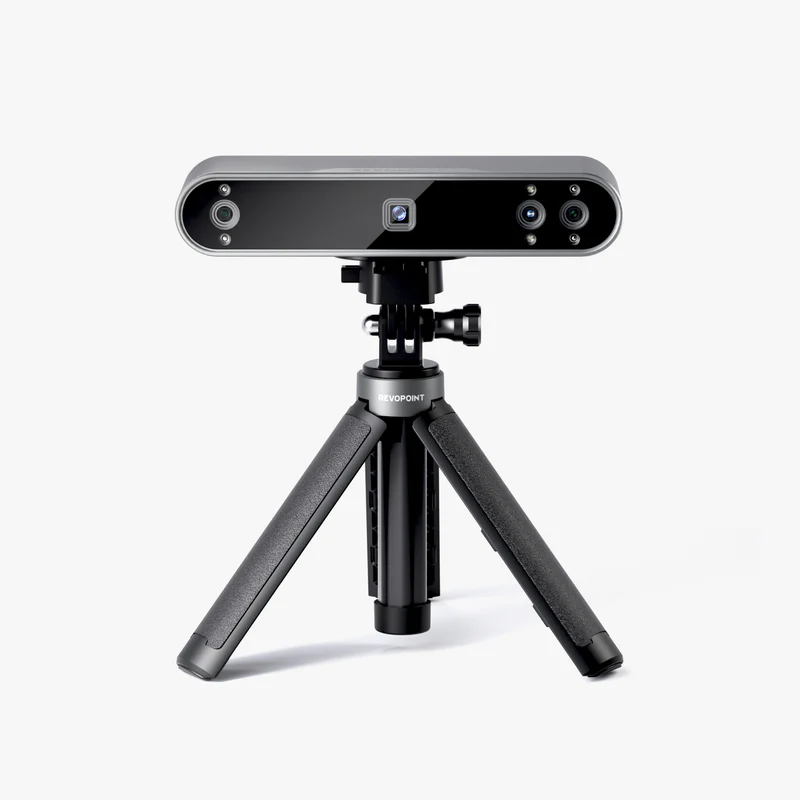

Revopoint POP 3 3d Scanner

₹94,999.00

Specifications:

Product Name: Revopoint POP 3

Technology: Dual-camera Infrared Structured Light

Single-frame Accuracy, up to 0.1 mm

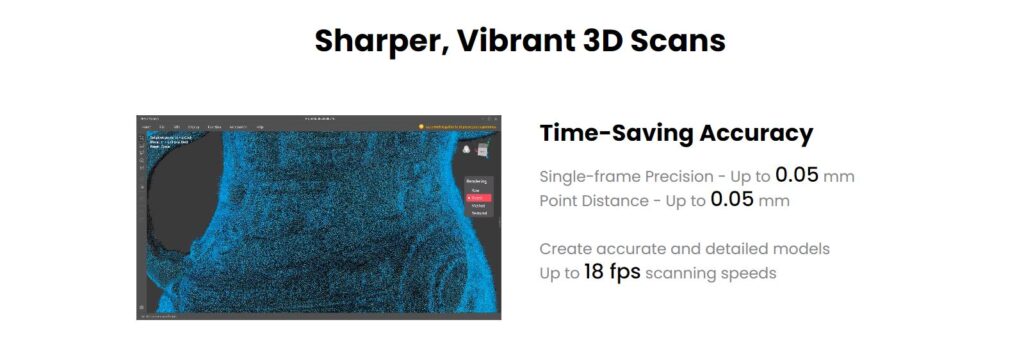

Single-frame Precision, up to 0.05 mm

Scanning Speed，up to18 fps

Fused Point Distance, up to 0.05 mm

Single Capture Area at Nearest Distance: 61 x 68 mm at 150 mm

Single Capture Area at Furthest Distance: 244 x 180 mm at 400 mm

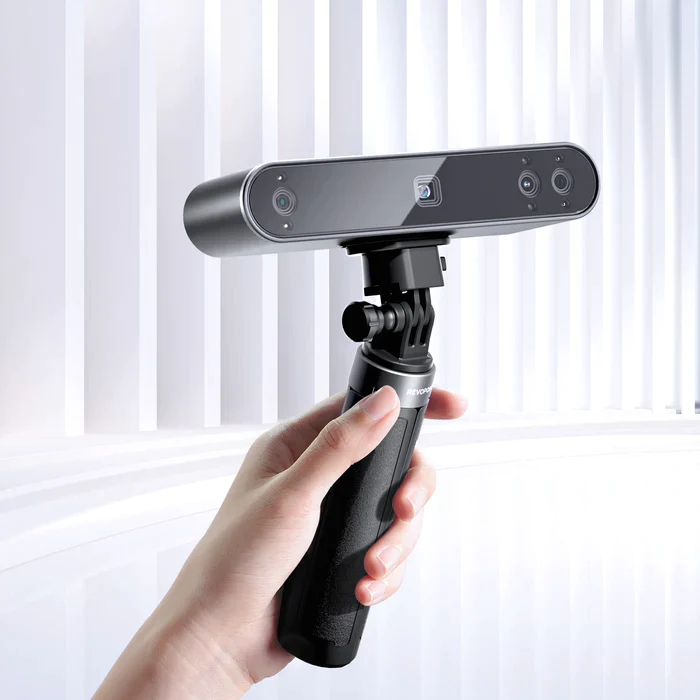

Scanning Type: Handheld and Desktop

Working Distance: 150 ~ 400 mm

Minimum Scan Volume: 20 x 20 x 20 mm

Maxmium Scan Volume: 2500 x 2500 x 2500 mm

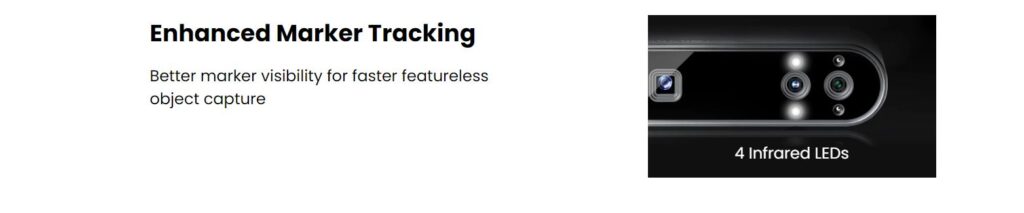

Auxiliary Lighting: Infrared Fill Lights, White Flash LEDs

Angular Field of View, H x W: 40 x 25°

CPU: 2 core, 1.6GHz

Position Sensors: 9-axis IMU

Scanner Weight: 190 g

Dimensions（L x W x H）: 153 x 45 x 29 mm

Tracking Methods: Feature , Marker Buttons 3

Connector Type: USB Type-C

Power Requirements: DC 5V, 1A

Wi-Fi Type: Wi-Fi 6

Bluetooth: 4.1

Compatible Systems: Windows 10/11 (64-bit), Andriod, iOS, macOS

Recommended PC Requirements: Intel Core i7, 16 GB RAM or better

Special Object Scanning: Use scanning spray for transparent, dark, or highly reflective objects

Scanning Environment: Indoors and Outdoors

Output Formats: PLY, OBJ, and STL

Ready to Print 3D Models: Yes

Note:
1. Precision is how close repeated measurements of the same object are to each other. Accuracy is how close a measured value is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
2. Class 1 Laser: Avoid direct eye exposure for extended periods! Refer to Standards for Class 1 Lasers for details.
3. Outdoor scans should avoid direct sunlight.
4. Some products have flashing lights, which may not be suitable for people with photosensitive epilepsy.

Description

POP 3: The Handheld 3D Scanner with Color Scans – Revopoint

Name: Revopoint POP 3 3d Scanner
SKU: 2118
Availability: InStock

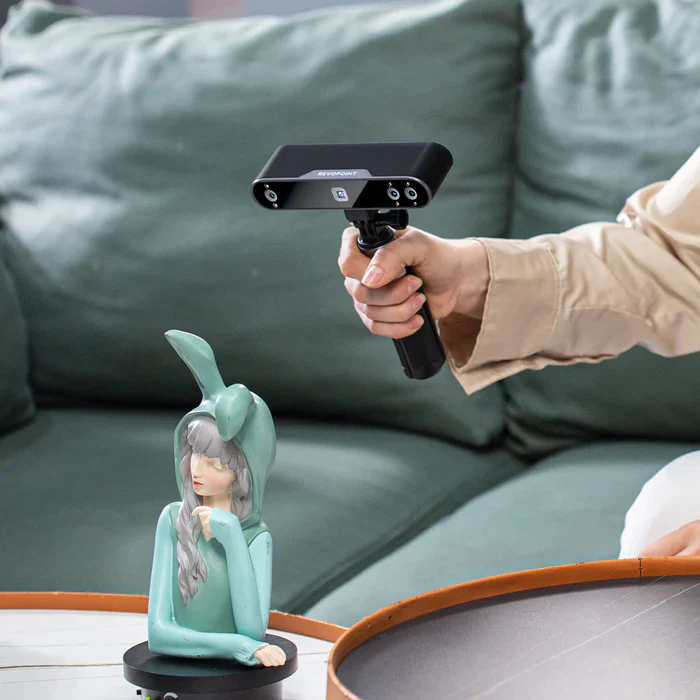

POP 3 is the next-gen 3D scanner from the POP series with new and improved hardware, design, and usability. The improvements in POP 3’s capabilities make capturing 3D scans for 3D printing, 3D animation, reverse engineering, healthcare, product design, digitizing historical items, VR/AR, and more even easier.
