Description
Main Features
 |
SuperPinda ProbeSuperPINDA probe features a hiqh-quality sensor for a fully-automatic Mesh Bed Leveling process. Before every print, the printer probes the bed in several places and creates a virtual heightmap of the print area. This process ensures that the first layer will always be spot on! |
Misumi Bearings & moreThe MK3S+ features a new set of metal clips for the genuine MISUMI bearings on the Y-axis. The belt tensioning mechanism on the X-axis was reworked and the X-end plastic parts reinforced. The filament path in the extruder was altered for better support of flexible filaments. |
 |
 |

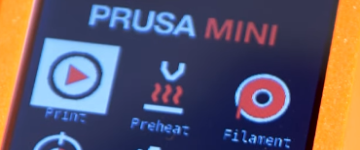

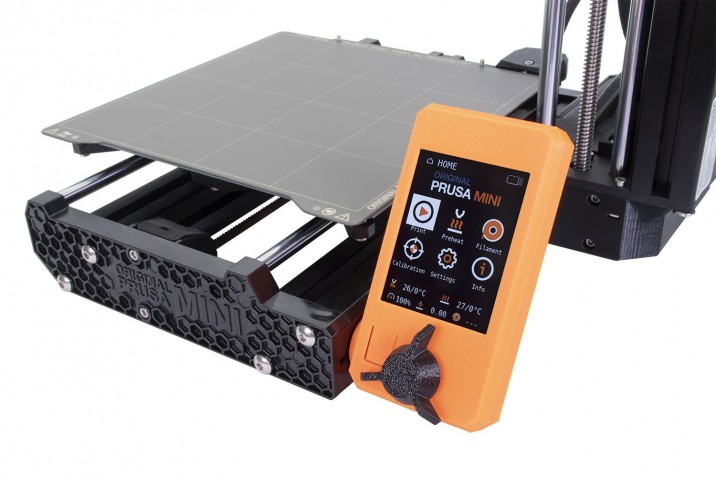

Color LCD ScreenConfigure your 3D printer with ease and see previews of sliced models before you start printing! Thanks to the 2.8’’, 240×320 LCD screen with 65.000 colors, every option is just a few clicks away. |
Flexible Print SheetsRemoving a print has never been easier! With the magnetic heatbed and removable spring steel sheets, you can remove a printed object merely by bending the steel sheet. The surface is easy to maintain and comes in two variants: smooth and textured. |
 |
 |

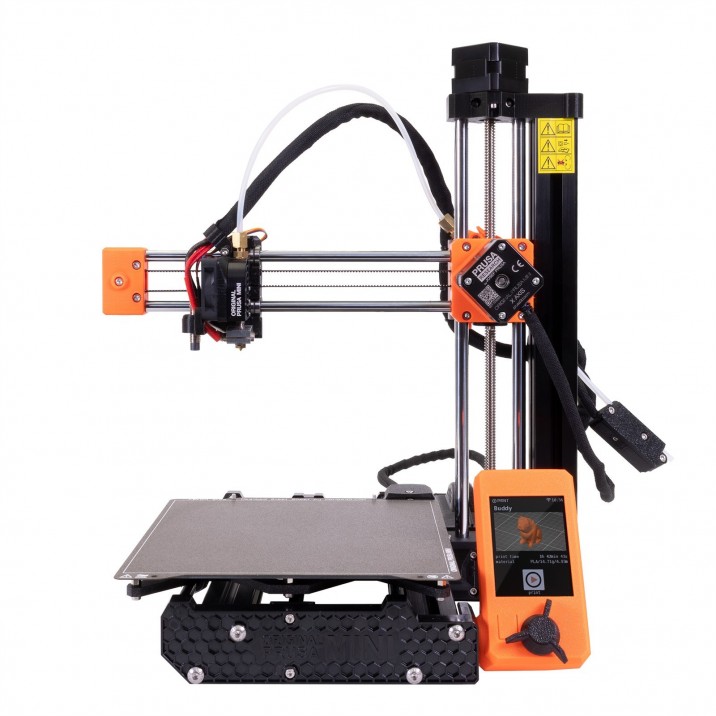

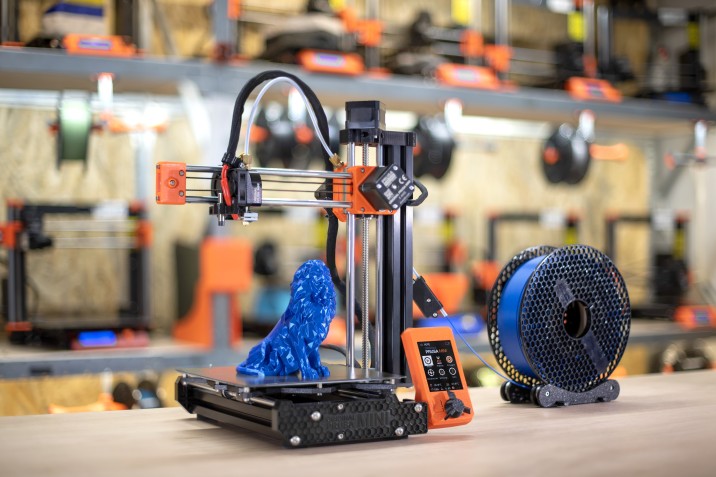

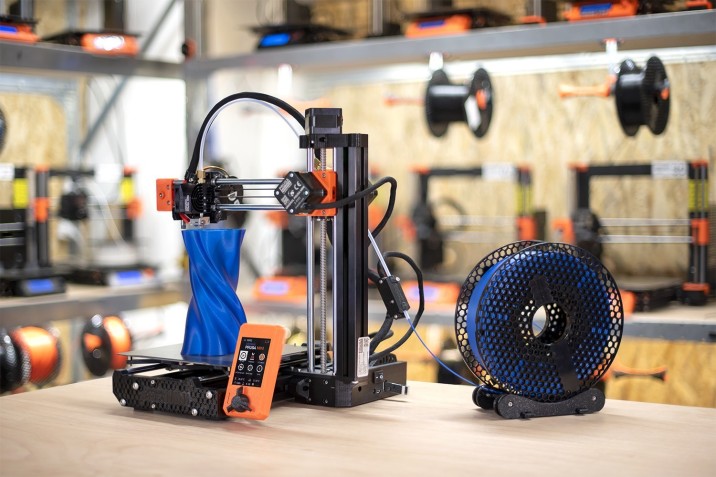

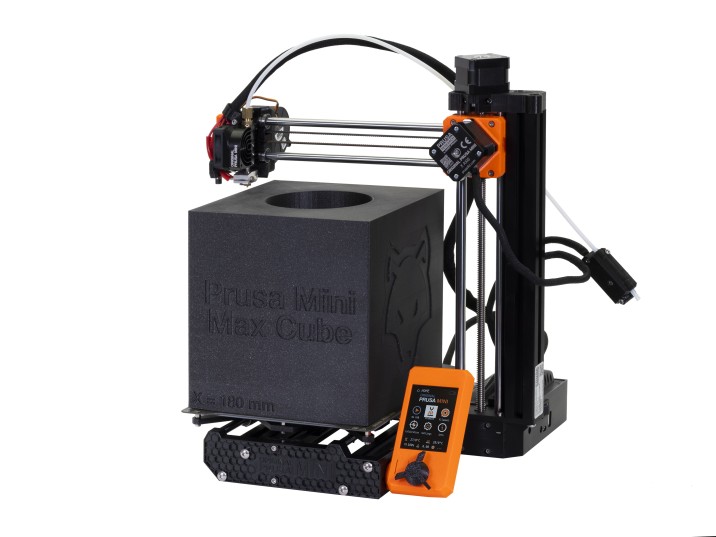

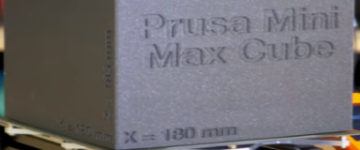

Build VolumeFeaturing a 7″×7″×7″ (18×18×18 cm) build volume, the MINI+ is a fully-equipped 3D printer. Featuring sensorless homing, automatic Mesh Bed Calibration, replaceable nozzles, network connectivity, USB printing and a full-color LCD screen, the MINI+ is a big printer in a small body. |

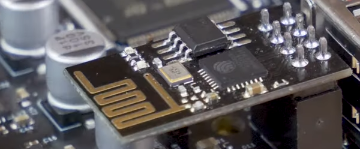

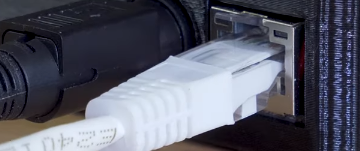

Network ConnectivityThe MINI+ comes standard with an ethernet port and you will be able to install the optional ESP Wi-Fi module upgrade which will enable sending files to the printer wirelessly, or download OTA firmware updates. Thanks to future updates you will be able to manage a whole print farm easily. |
 |
 |
Safety FeaturesEvery part we use is thoroughly tested in-house. This is why our 3D printers are highly reliable and safe to use. The MINI+ is equipped with three thermistors and comes with a high-quality power supply (Delta or Mean Well – depending on region) for safe and reliable information. |

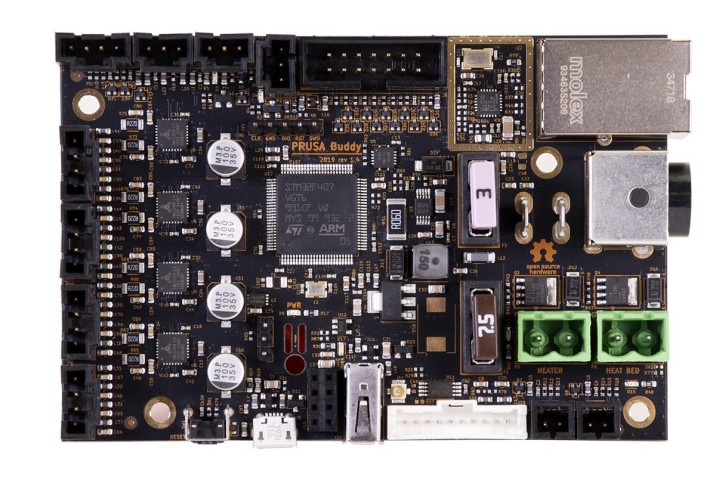

32bit Controller STM32More power, more options. Our brand new custom-made 32-bit “Buddy” motherboard with Trinamic 2209 drivers brings more bang for your bucks. It’s capable of nearly everything OctoPrint can do, including farm management software (future firmware update). |
 |
|
|
Support for a wide range of MaterialsThe MK3S+ is fully compatible with a wide range of various types of materials. No matter whether you want to print something for fun from PLA and flexible materials, or you need to produce durable prototypes from PETG, ASA, Polycarbonate and Polypropylene – the MK3S+ can handle them with ease. |

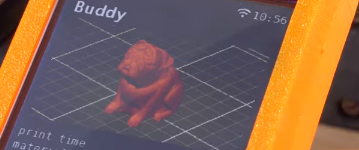

One-click PrintingOnce you insert a USB drive with a sliced object, a new menu with an object preview window appears. Confirm the selection with a single click of the control wheel and watch the printer do the rest for you. |
|
Technical Parameters
| Build Volume | 180 x 180 x 180 mm | 7 x 7 x 7 in |
| Layer height | 0.05 – 0.25 mm |
| Nozzle | 0.4 mm default, wide range of other diameters/nozzles supported |
| Filament diameter | 1.75 mm |
| Supported materials | Wide range of thermoplastics, including PLA, PETG, ASA, ABS, PC (Polycarbonate), CPE, PVA/BVOH, PVB, HIPS, PP (Polypropylene), Flex, nGen, Nylon, Woodfill and other filled materials. |
| Max travel speed | 200+ mm/s |
| Max nozzle temperature | 280 °C / 536 °F |
| Max heatbed temperature | 100 °C / 212 °F |

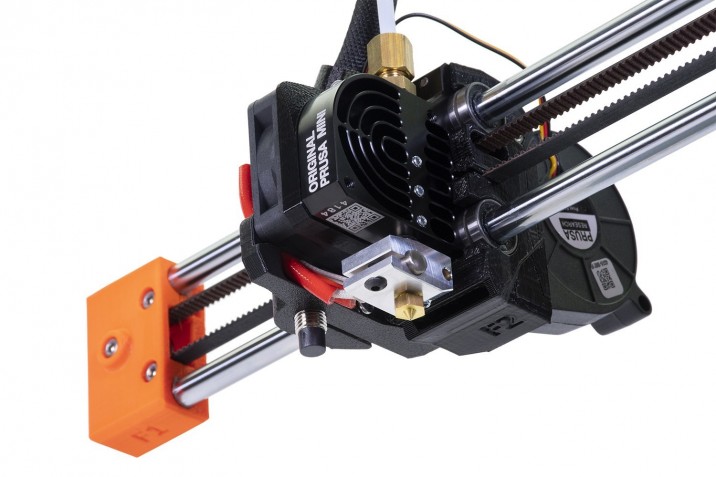

| Extruder | Bowden system with 3:1 gearing |
| Print surface | Removable magnetic steel sheets(*) with different surface finishes, heatbed with cold corners compensation |
| Printer dimensions (without spool holder & external PSU) | 4.5 kg 380×330×380 mm; 15×13×15 in (X×Y×Z) |
| Shipping box dimensions (semi-assembled) | 11 kg (volumetric weight); 485×265×405 mm; 19×10×16 in (X×Y×Z) |
| Shipping box dimensions (kit) | 6 kg (volumetric weight); 430×230×242 mm; 17×9×9 1/2 in (X×Y×Z) |
* Consumable parts, such as print sheets (smooth, textured, etc.), are not covered by the warranty since their coatings are expected to deteriorate over time, unless the failure is due to a defect in materials or workmanship. Cosmetic damage, which includes, but is not limited to, scratches, dents, cracks, or other aesthetic damage, is also not covered. Only sheets defective upon delivery are covered by the warranty.
Full Features List (January 2023 Edition)
- Silent Trinamic 2209 stepper drivers
- Ethernet RJ45 port and optional ESP Wi-Fi module upgrade
- 3 thermistors, fan RPM sensors
- Bowden system with 3:1 gearing
- SuperPINDA probe – no temperature drift (more info)
- Fast preheat: PLA 1 min / ASA 3 min
- Sensorless homing for X and Y axes
- 2.8″ graphic 65k color screen with G-Code preview
- Prusament PLA sample weight: ~2×25 g
Awards & Press Reviews
Thanks to all of these (and many other) features, the MK3S became the “Best 3D Printer” according to ALL3DP. The MK3S is also the highest-rated 3D printer, and the “Editor’s Choice”, in the prestigious MAKE:MAGAZINE’s Digital Fabrication Guide 2019. The MK3S is also featured in TechRadar’s Best 3D printers of 2021 as The best all-around 3D printer. NY Times wrote that “…of the 11 printers we’ve tested over the past five years, the Prusa i3 MK3S printer has produced the largest and best-looking prints.” According to ZDNet, the MK3S is “The best pro-sumer 3D printer under 1000 USD.”
