Description

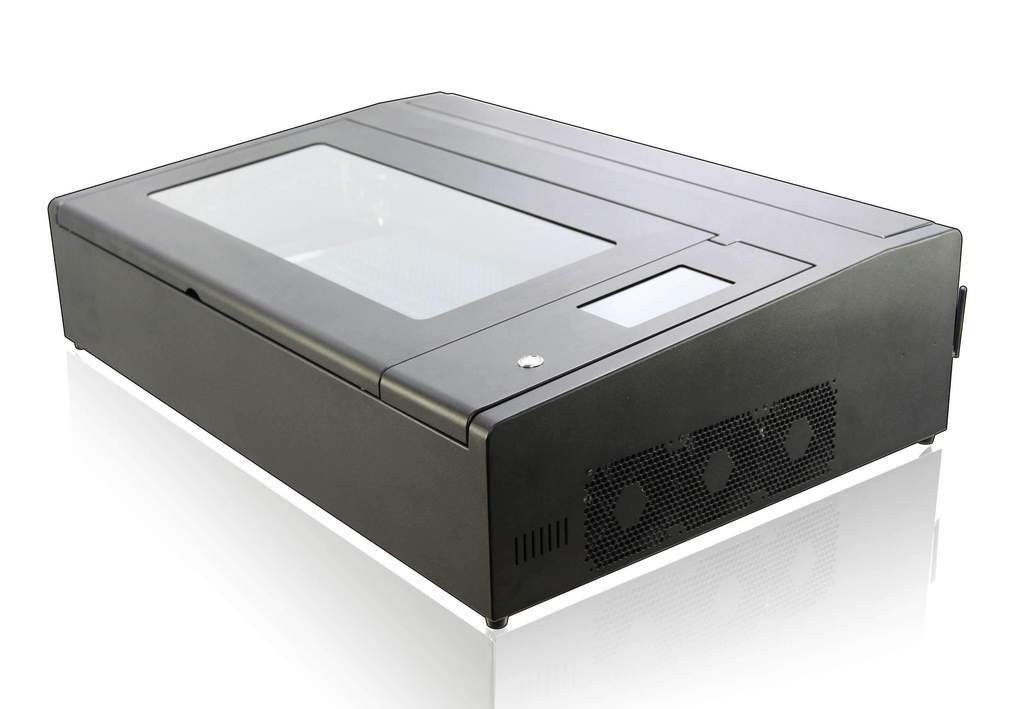

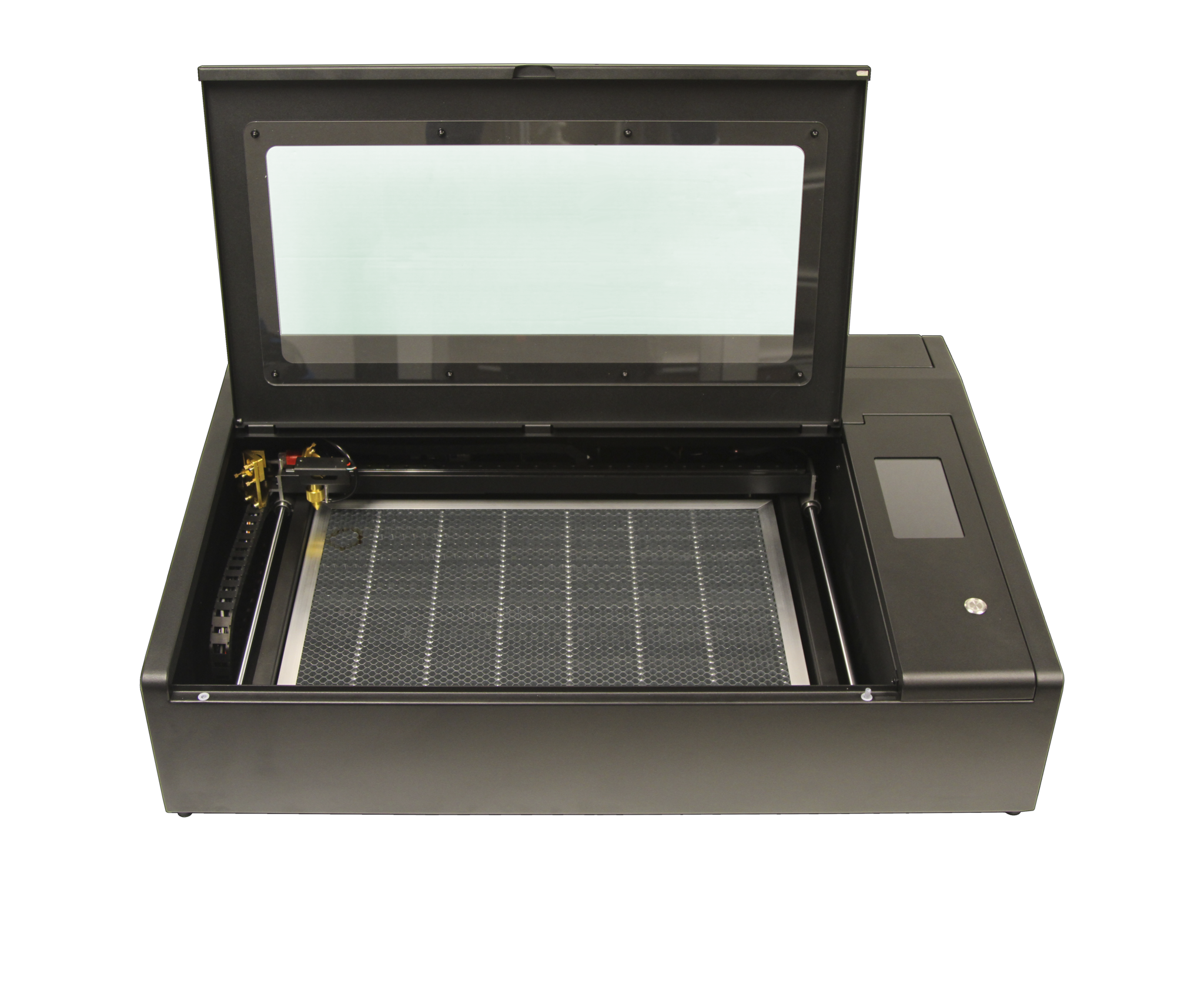

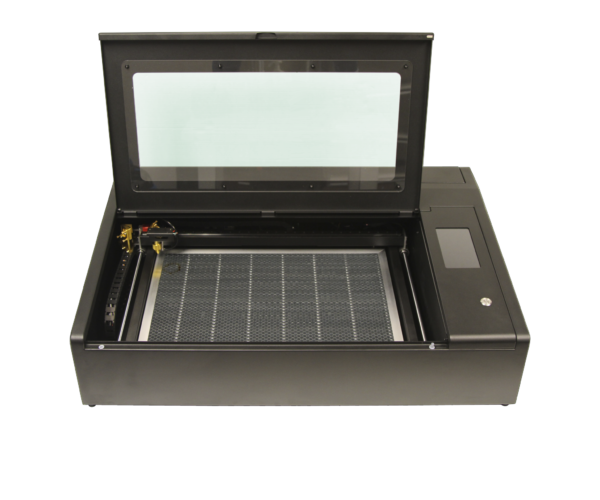

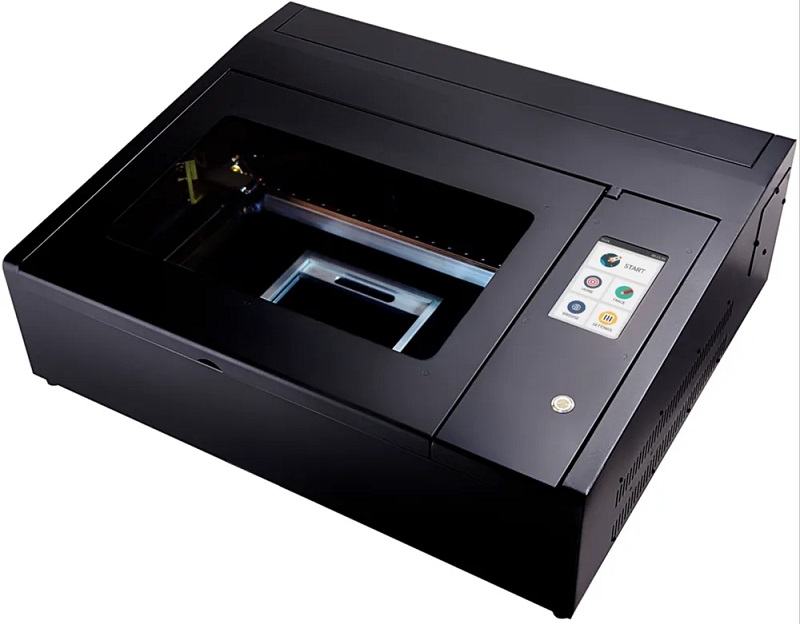

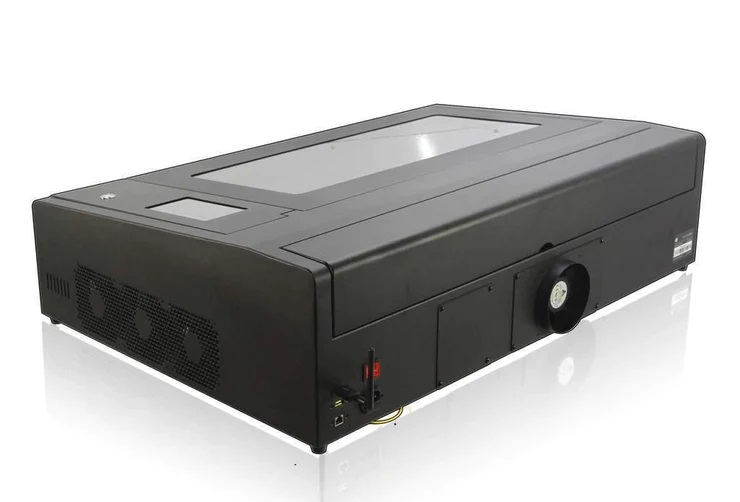

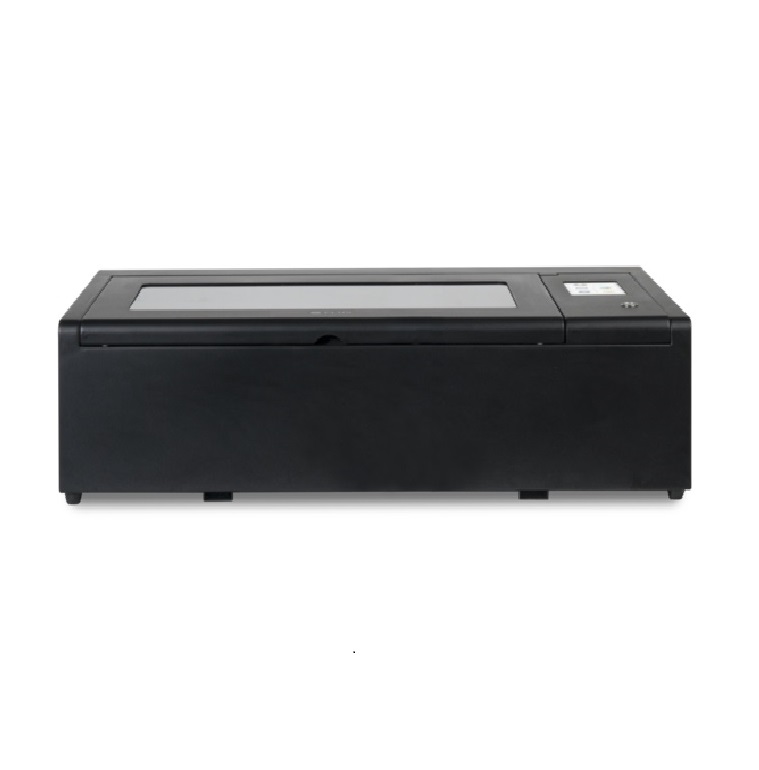

With its sleek design and intuitive user interface, the Beambox Pro Laser Cutter and Engraver is an excellent addition to your design studio and the top of the line model currently offered by FLUX. Capable of cutting and engraving on organic materials, plastics, and selected metals users are just a few steps away from making amazing finished products.
FEATURES:
Camera alignment: Utilizing the built-in HD camera, users can preview the work area and the material being used from the convenience of their laptop or cellphone. Placing designs, and ensuring the finished product is exactly as intended has never been simpler.
Internal water cooling: The built-in closed-loop water cooling system, which is designed to circulate water throughout the machine, ensures that all components of Beambox remain at the optimal operating temperature when in use.
High-resolution laser: Beambox is equipped with a CO2 laser tube that operates in the 10,640 nm wavelength. The maximum cutting thickness of this laser is 10mm (varies by materials). It is possible to achieve higher cutting thicknesses if you slow down the speed or pass over the cutting area multiple times.
Integrated ventilation system: The ventilation fan produces 340CMH (200 CFM), this assists with the extraction of smoke and fumes that may occur during the cutting process.
Smart safety features: In addition to being fully enclosed (protecting users from laser light and fumes), the Beambox compact will automatically pause processes if the lid is opened during a task (Smart lid sensor). Though highly unlikely, in the event of an emergency Beambox Compact can be shut down immediately using its emergency power switch.
Add on-features:
Rotary: The Rotary add-on allows users to unlock the full engraving potential of Beamo by enabling engraving on curved objects such as glassware and bottles. The rotary module spins the workpiece. This easy to install add-on opens up whole new creative dimensions.
Equipped with premium quality rails, the performance and durability of Beambox is unparalleled.
CUTTING AND ENGRAVING COMPARISION CHART
| Material
Wood |
Cut
5 mm |
Pro Version
8 mm |
Engrave
◉ |
| Acrylic | 5 mm | 8 mm | ◉ |
| Leather | 6 mm | 8 mm | ◉ |
| Cardboard | 7 mm | 10 mm | ◉ |
| Felt | 10 mm | 12 mm | ◉ |
| Rubber | 5 mm | 8 mm | ◉ |
| Paper | 5 mm | 8 mm | ◉ |
| Glass | ◉ | ||
| Anodized Aluminum | ◉ | ||
| Stainless Steel* | ◉ |
Note: *Using FLUX Stainless Steel Spray
Maximum thickness 12mm (Varies by material))
Beam Studio & BeamCam are compatible with JPG/PNG/SVG/DXF files – bring your designs to reality using the file types of your choice!
Beambox Pro is powered by FLUX’s in-house design software – Beam Studio & the iOS/Android app BeamCam. This hassle-free software and app provide users with a one-stop design experience. Edit text and vector file, modify bitmap images, align, distribute objects and more!
Utilizing the display panel, users can start, pause, control, and monitor the status of your Beambox Pro all with a touch of a finger.
Laser:
- Spec: 50W CO2 Laser
- Wavelength: 10640 nm
- Moving Speed: 0 -300 mm/s
- Cutting Thickness: 0-12mm (varies by material)
Hardware:
- Dimensions: 9.8” x 40.5” x 26.3” in (25 x 83 x 67 cm)
- Weight: 105lb (48kg)
- Work Area: 23.6” x 14.7” in (60 x 37.5 cm)
- Camera Preview Area: 23.6” x 14.1” in (60 x 36 cm)
- Work Area Depth: 3.14” in (8 cm)
- Power: AC 110V/220V
- Touch Panel: 1024 x 600 LCD
- Camera: HD CMOS
- I/O: Wi-Fi/Ethernet
Software:
- Mode: Vector/Graphic (monochrome, gray scale)
- Operating System: Windows/macOSX/Linus
- Supported File Type: JPG/PNG/SVG/DXF
