Description

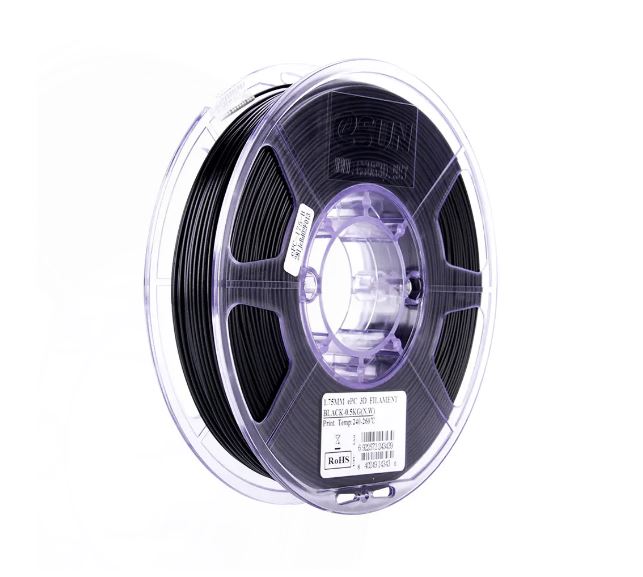

ePC(Polycarbonate)
3D printing materials with excellent mechanical properties, high toughness and impact resistance, stable and durable; temperature resistance, heat distortion temperature up to 80 ℃.
| Filament Properties Table | |
|---|---|
| 3D PRINTING FILAMENT | ePC |
| Density(g/cm3) | 1.12 |
| Heat Distortion Temp(℃,0.45MPa) | 80 |
| Melt Flow Index(g/10min) | 19.5(300℃/1.2kg) |
| Tensile Strength(MPa) | 54.88 |
| Elongation at Break(%) | 150.24 |
| Flexural Strength(MPa) | 63.41 |
| Flexural Modulus(MPa) | 1073 |
| IZOD Impact Strength(kJ/㎡) | 13.2 |
| Durability | 10/10 |
| Printability | 6/10 |
| Recommended printing parameters | |
| Extruder Temperature(℃) | 240 – 270℃ Recommended temperature：260℃ |
| Bed temperature(℃) | 80 – 120°C |
| Fan Speed | 0% |
| Printing Speed | 20 – 50mm/s |
| Heated Bed | Required |
| Recommended Build Surfaces | PVP solid glue, PEI |
| Feature | |
| Flexible | —— |
| Elastic | —— |
| Impact Resistant | √ |
| Soft | —— |
| Composite | —— |
| UV Resistant | —— |
| Water Resistant | —— |
| Dissolvable | —— |
| Heat Resistant | √ |
| Chemically Resistant | —— |
| Fatigue Resistant | √ |
| Need drying | √ |
| Heated Bed Required | √ |
| Print recommend | Drying at 70℃/>6h |
Notes:
1.It’s better to dry the ePC filament before printing(70℃/>6H).the eBOX is suggested to use when printing the ePC filament.
2.The shingkage of ePC material is high.So pls use printer which has chamber to print the ePC filament.
