Description

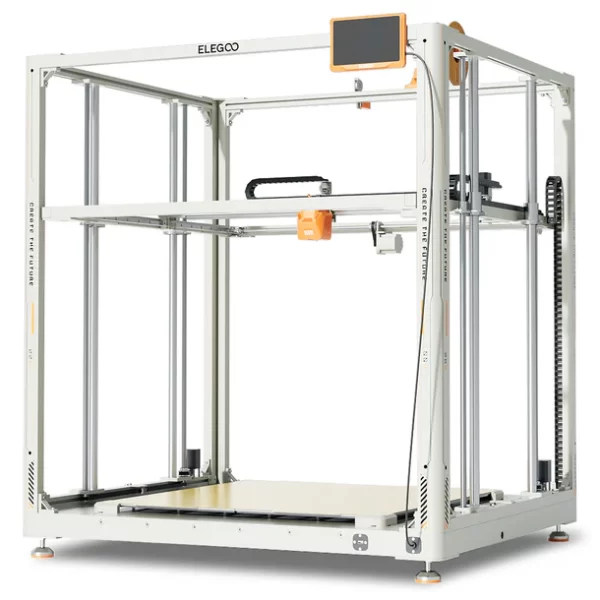

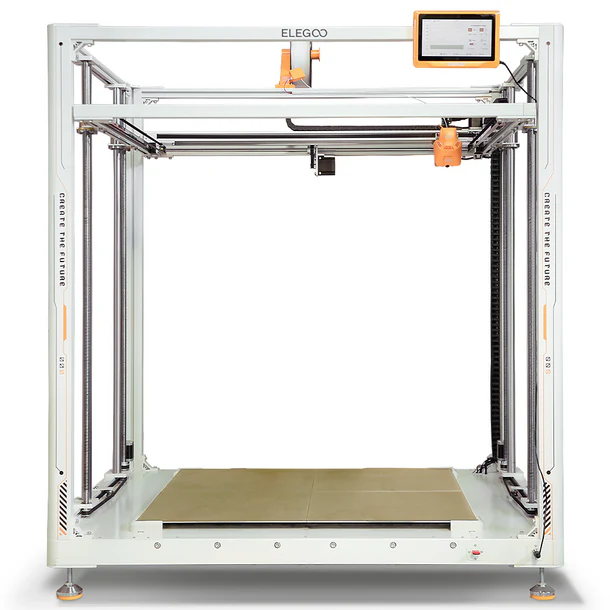

ELEGOO OrangeStorm Giga 3D Printer

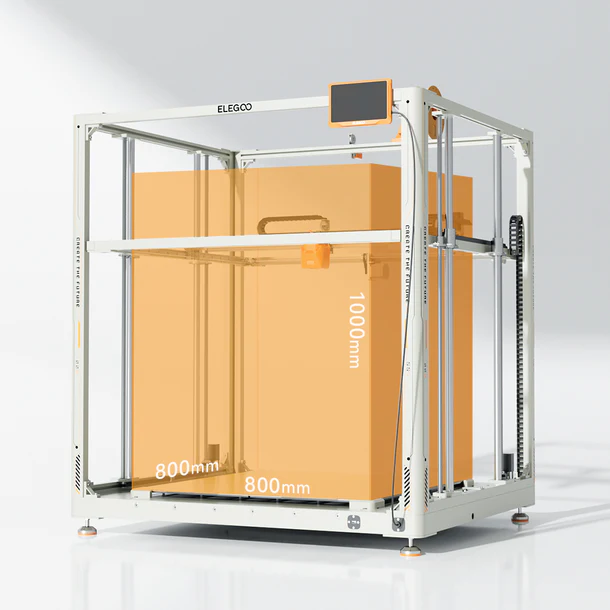

Gigantic in Size
With a build volume of 800mm x 800mm x 1000mm, the industrial-grade FDM printer not only meets the user’s printing needs for oversized models, but also reduces the need to cut models into smaller sections for efficient printing.

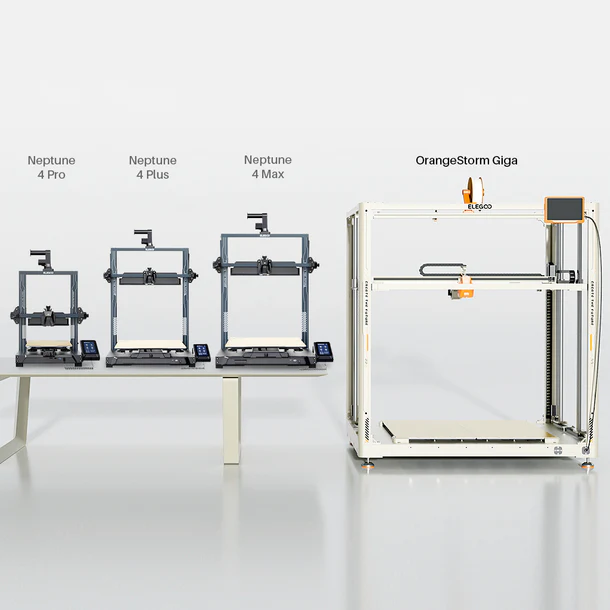

*To better understand how large this printer is: Video or 3D Model Mockup of Giga.

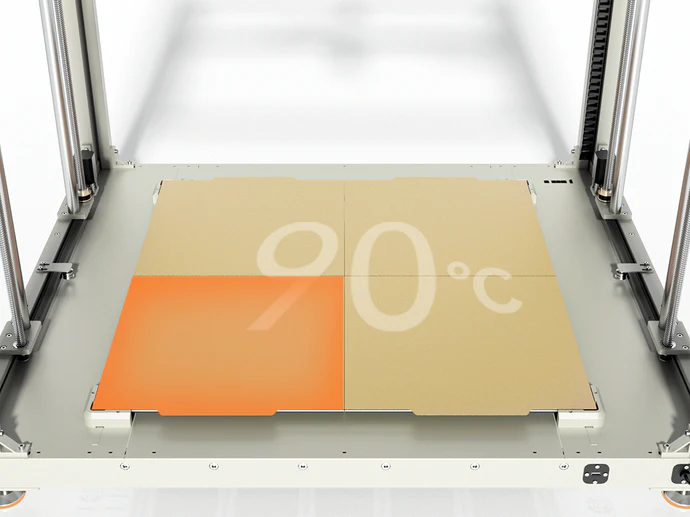

Efficient Heated Bed
The heated bed consists of four independent (410*410mm)
PEI magnetic high-temperature platforms with a maximum temperature of 90°C.
The four platforms can be heated simultaneously
to reach 90°C over the entire area in 17 minutes (Ambient temperature: 25℃).
The platform where the model is located can also be automatically
recognized and heated independently, or manually and independently
controlled for increased energy efficiency.

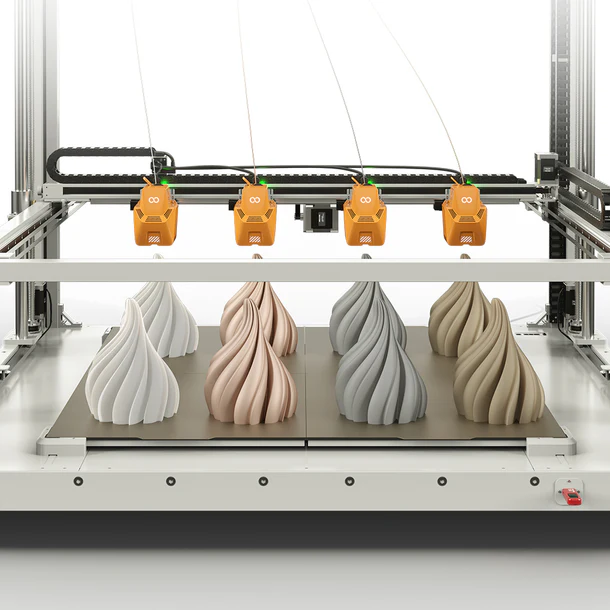

Multi-Nozzle Printing
Three additional printheads can be added to the X-axis to realize simultaneous printing with four nozzles, supporting printing four of the same model while each nozzle can be equipped with the same material and different color filament to achieve four different colored models of the same kind.

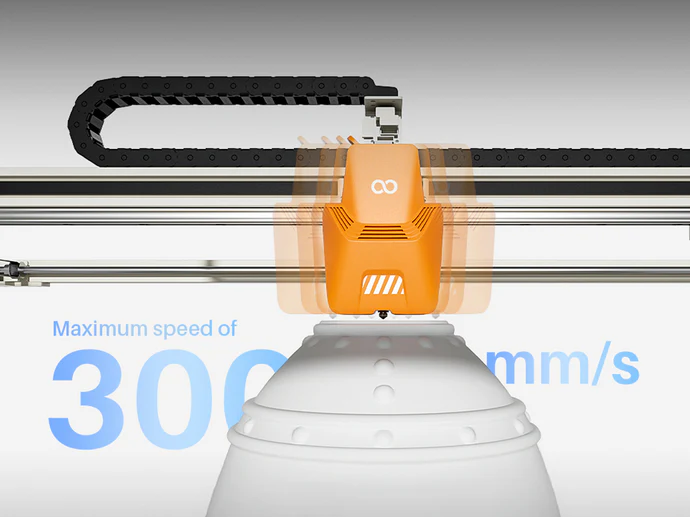

Fast Printing
Utilizing a 64-bit 1.5G clock speed quad-core high-performance processor (SOC RK3328), it provides sufficient computing capacity while delivering 6 times the printing speed, with a maximum speed of 300mm/s (150mm/s recommended), which is the top end print speed for printers of its size.

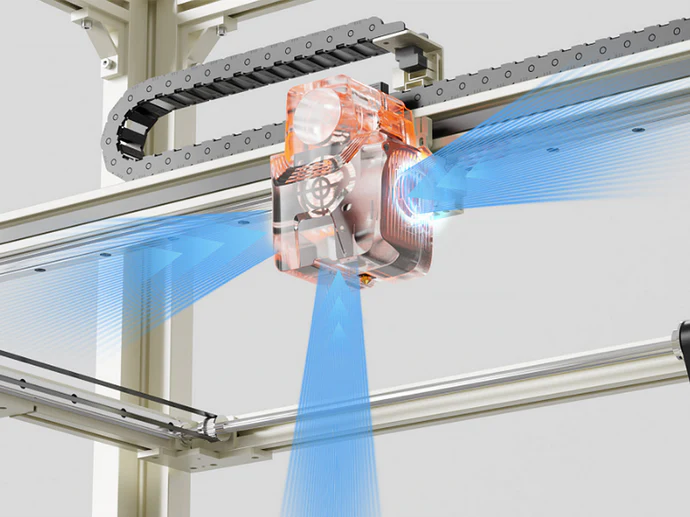

Powerful Cooling Fan
Thickened double-sided cooling fans can comprehensively enhance the model printing results. In addition, the fans are equipped with an intelligent control function that stops working when printing is complete, which saves energy and reduces noise as well as prolongs the lifespan. (5015 ball blower fan*2, 4010 ball axial fan*1)

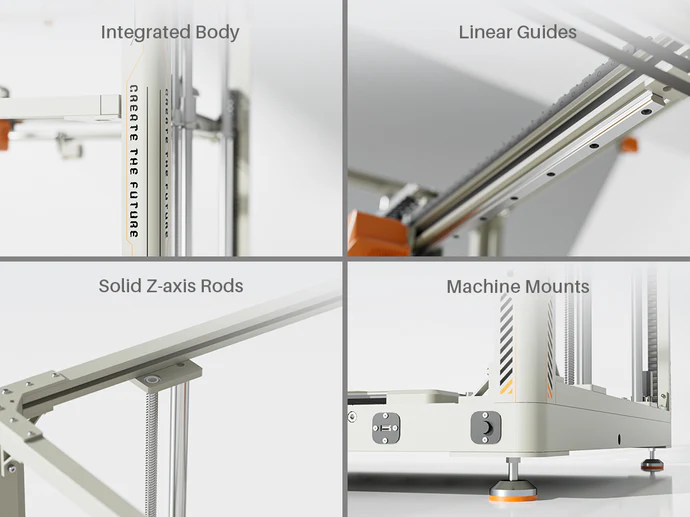

High-Quality Craftsmanship
Integrated body, elegant yet durable. The X-axis and Y-axis are linear guides, effectively improving printing stability and increasing lifespan. The Z-axis features an upgraded version of the Z-Axis rod to make the machine run smoothly and ensure leveling precision. Machine mounts are designed with a carbon steel round base and rubber round anti-slip pad bottom.

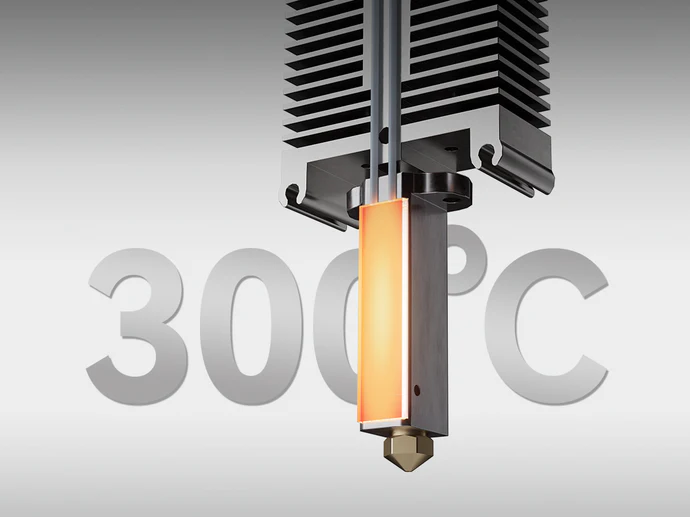

Upgraded Nozzle
The upgraded 300℃ high-temperature nozzle adopts a proximal double-gear extrusion structure and full titanium alloy heat pipe. Plus, the nozzle is upgraded to chrome zirconium copper with a 60W ceramic heating pad for smoother and more uniform extrusion, which improves the printing precision.
In addition, the nozzle PID auto-calibration function provides more precise control of the nozzle temperature and the built-in acceleration sensor automatically calibrates resonance compensation parameters to further ensure print quality and enhance your printing experience.
Nozzle Diameter(included): 0.6mm
Nozzle Diameter(optional): 0.4mm/ 0.8mm/ 1mm

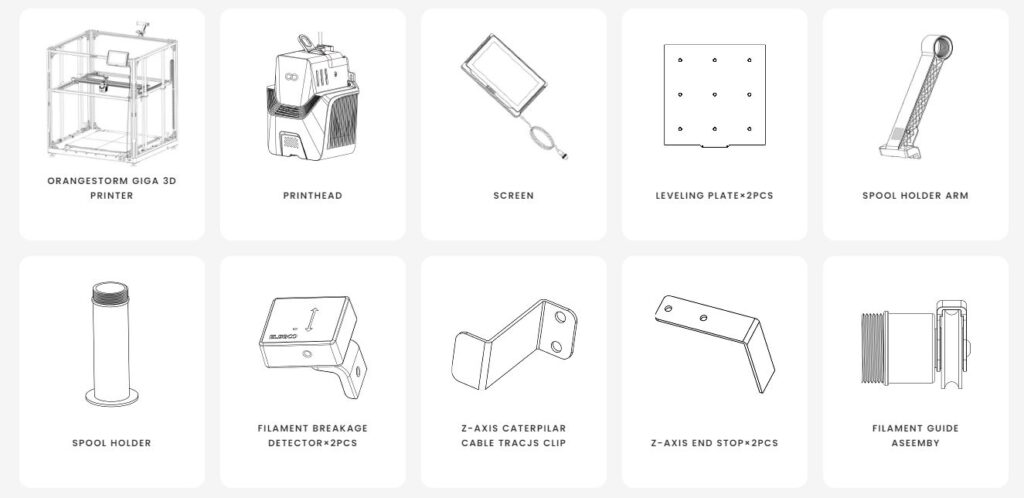

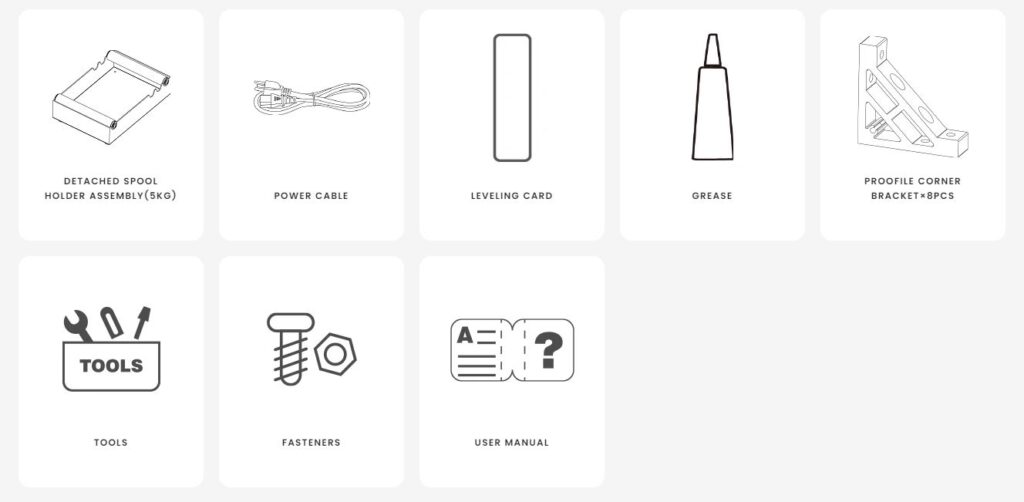

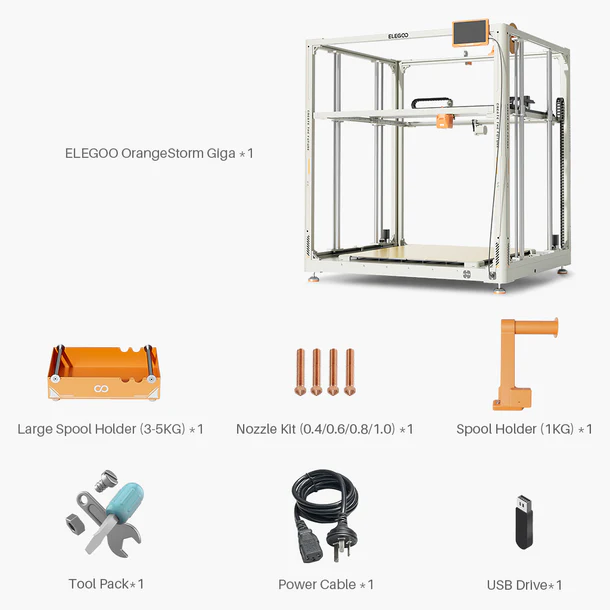

What’s In Box
