Creality CV-30 CR-Laser Falcon Engraver 10W
Creality CV-30 CR-Laser Falcon Engraver 10W - Image 2
Creality CV-30 CR-Laser Falcon Engraver 10W - Image 3
Creality CV-30 CR-Laser Falcon Engraver 10W - Image 4
Creality CV-30 CR-Laser Falcon Engraver 10W - Image 5

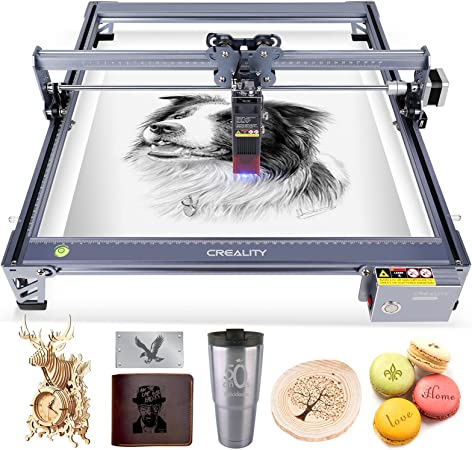

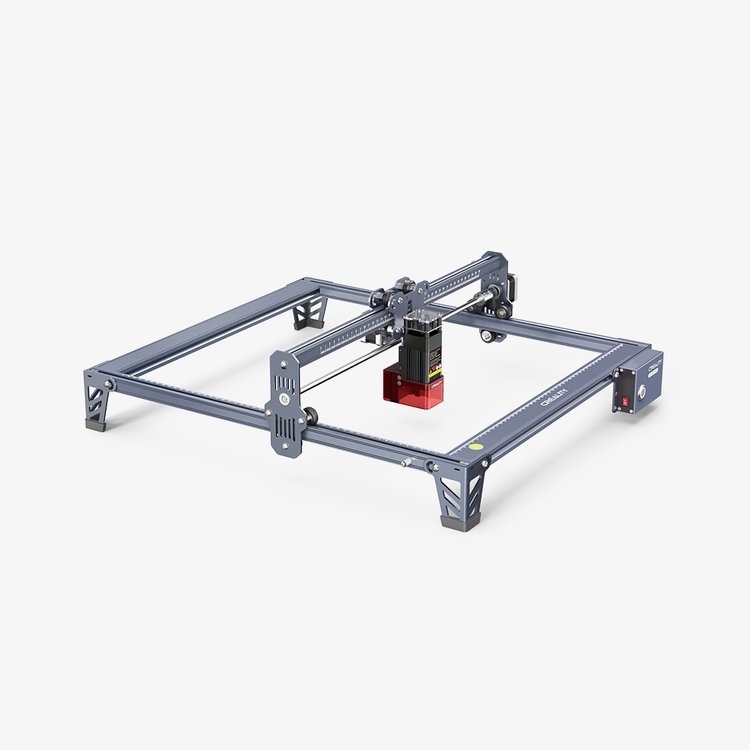

Creality CV-30 CR-Laser Falcon Engraver 10W

₹53,999.00

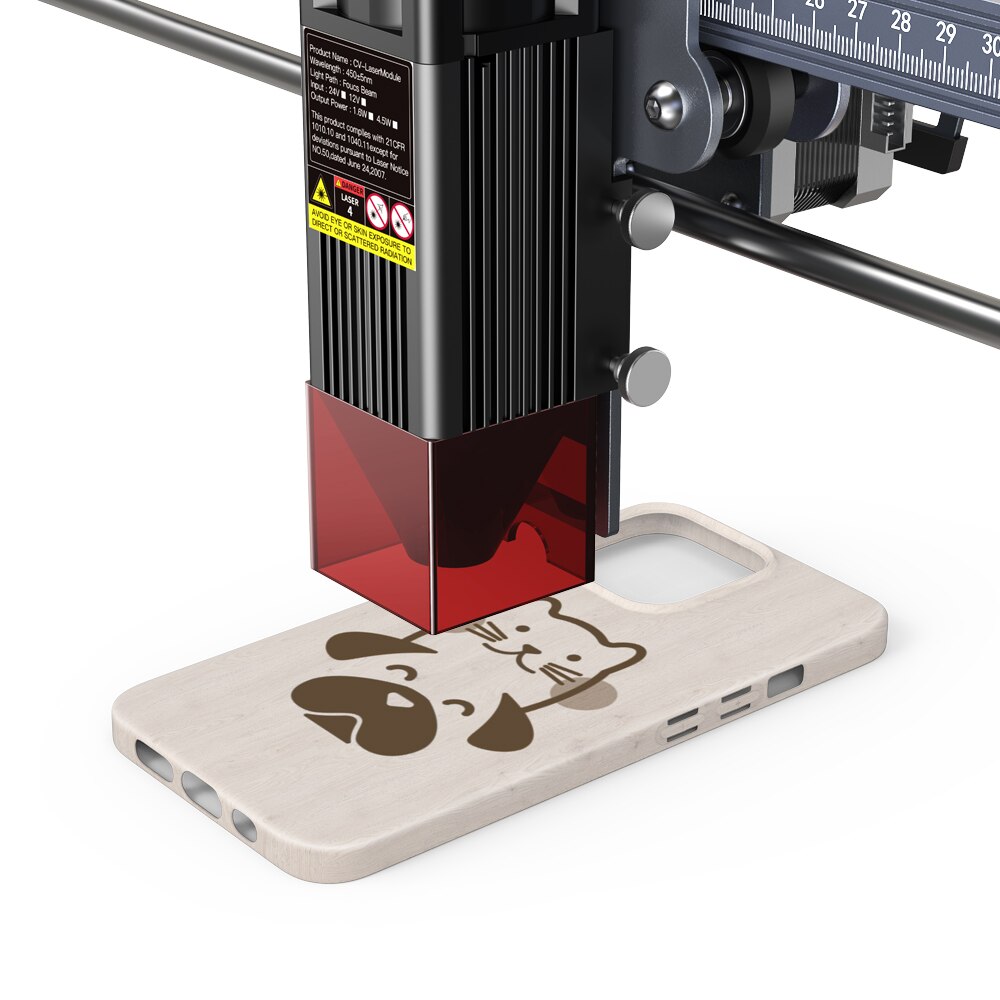

The Laser Falcon take into account both engraving and cutting performance by adopting the poly-lens spot compressed laser technology, achieving both precision up to 0.1 mm. The spot size was compressed to 0.12*0.06 mm from 0.32*0.14 mm. In this case, the engraving accuracy and engraving speed are increased by more than 6 times. The works are finer, with less burr, flanging.

It also has extraordinary cutting ability. It can cut basswood veneer of 4-5 mm, two times thicker than the original 2 mm.

Category:
35 people are viewing this product

Description

The Creality brand is well known to all the 3D printing fans around to world as one of the pioneers in the category. But the 3D printers are not the only items in their portfolio. Recently they have expanded with nifty laser engravers models and a new one is about to hit the market today. The Creality CR-Laser Falcon 10W is featuring some very advanced specs and you can of course take part in some nice launch benefits as well.

Creality CR-Laser Falcon 10W is an upgraded version of the original 5W model, introduced back in April. The new laser module brings stronger engraving and cutting performance all around. With 0.06mm of precision you can flesh out all the details nicely, thanks to the advanced LD+FAC+C-Lens technology. And cutting up to 12mm thick wood boards is nothing to scoff at either and it’s not scared of some other materials like acrylic or even stainless steel as well. With big 400 x 415mm work area you have plenty of flexibility too.

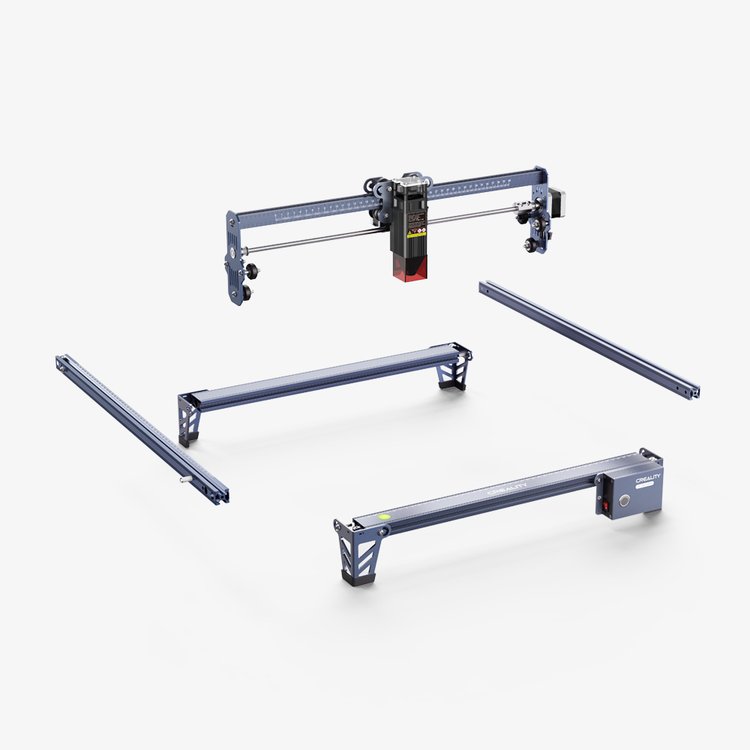

There are some extra perks available for the machine, which are not usually the norm in this price range. Like built-in leveller, measuring scale on the axis profiles or multi-level fixed focus block. And thanks to usage of the 3D core tech from their Ender 3D printer series it’s an even better machine. It boasts stable and robust build with an 8mm shaft, 4 durable Y-shaped motion wheels for smooth motion or 32-bit silent mainboard for stable and smooth operation.

EASY CONTROLS AND RICH SAFETY FEATURES

Controls are another strong part of Creality CR-Laser Falcon 10W, because of its ease. You can operate it with just simple press of one button and thanks to offline working mode with TF card you don’t need a computer at all. Focusing of the machine is quite easy as well and can be done in 3 simple steps. And new CR-Laser Falcon also features some advanced safety protections. Like the protective cover around the laser head, gyroscope, buzzer or an indicator for stopping the machines in case of accidental tilt, flip or drop.

SPECIFICATIONS

OUTPUT POWER TRUE 10W
ENGRAVING AREA 400*400mm
ENGRAVING SPEED 20000mm/min
MACHINE SIZE 580*550*150mm
SPOT SIZE 0.05*0.1mm
LASER WAVELENGTH 455±5nm
MOTHER BOARD OLM-ESP-PRO-V2.4
MOTOR ►42X60 Y Stepper Motor►42X40 X Stepper Motor
PRODUCT MATERIALS 70% Aluminum + 15% Steel + 5% Plastic + 5% Brass + 5% Others
CONTROL SOFTWARE LaserGRBL/LightBurn/Laser Explorer
