Description

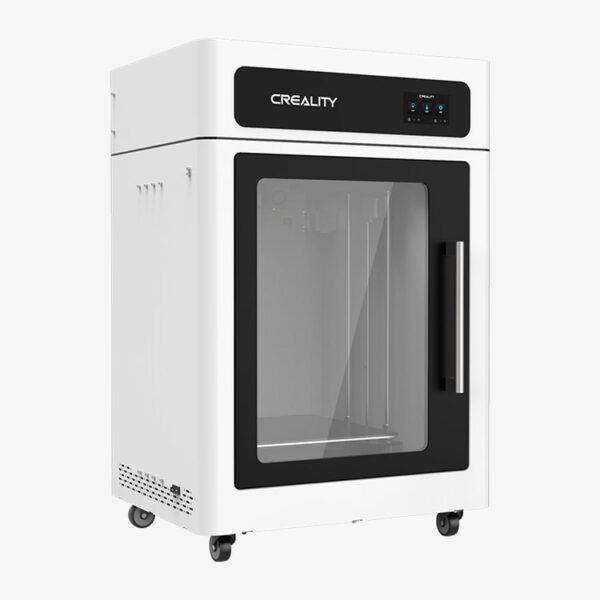

CR-3040 Pro FDM 3D Printer Features
Creality CR-3040 Pro 3D printer is the new upgrade of CR-3040. Which is more innovative and higher performance. The print size is 300x300x400mm, with a new nozzle kit to make a high print precision.
High-Precision Mechanical Structure

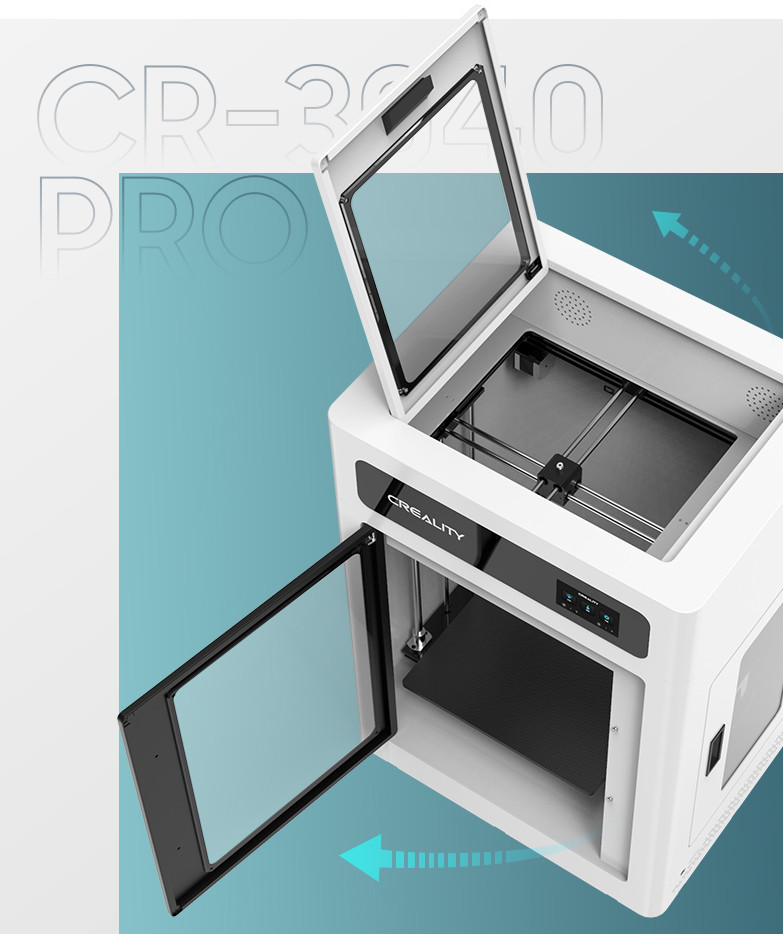

With the white and delicate appearance, full-closed structure and high bearing capacity ensure the constant temperature environment to print with high stability and precision.With the dual-door design, you can observe the printing process in all directions.
Industrial Print Size
Integrated machine with large printing volume meets your endless creativity. Print size:300x300x400mm
Double XY-axes and Double Z-axis screws
Double cross shaft with precise screw and positioning transmission ensures the print speeds and print stability.
Brand-new print platform
The hotbed temperature is up to 110℃ with even heating and high adhesion. The upgrade Carborundum glass platform is convenient to remove the model without warping.
New Nozzle Kit
Equipped with the new generation of the heat sink, the nozzle can cool down timely without plugging.The heating device with large power can heat quickly. The upgraded platinum resistance thermistor has a more sensitive temperature sending and longer service life.
Air purification system
Equipped with double 6.25 fans, it effectively reduces the air dust and avoids excessive cabinet temperature, which ensures the printing effect.
LED Light/Real-time printing observation
Built-in LED light with soft light is convenient to observe the printing process and avoid printing failure.
| Technical specifications | |
| Usable Nozzle Type | MK8 |
| Usable Filament Diameter | 1.75 mm |
| Max Nozzle Temperature | 280 ºC |
| Open Filament System | Yes |
| Extruder Type | Bowden |
| Recommended Printing Speed Max | 180 mm/s ( |
| Build Area | 300 mm x 300 mm x 400 mm |
| Build Plate Temp Max | 110 ºC |
| Build Plate Material | Carborundum glass plate |
| Build Plate Attachment | clamp |
| Build Plate Leveling System | BL-Touch |
| Build Chamber During Process | Open or Closed |
| Filament Chamber Closed | Yes |
| Extruder Number Of | 1 |
| Installation Space / Requirements | |
| Total Mass Overall Dimensions | 540 mm x 471 mm x 885 mm |
| Total Weight | 58 kg |
| Max Power Consumption | 500 W |
| Voltage | AC: 100 V – 240 V (50/60 Hz) |
| DC: 24 V | |
| Equipment | |
| Hepa Filter | Yes |
| Filament Runout Sensor | Yes |
| Power Loss Fail Safe | Yes |
| Touch Screen | Yes |
| Connection | |
| SD Card | Yes, SD-Card |
| USB Port | Yes |
| WLAN | No |
| Accuracy | |
| Layer Height | 0.1 – 0.3 mm |
| Shipping | |
| Shipping Box | 700 mm x 640 mm x 1115 mm |
| Shipping Weight | 110 kg |
